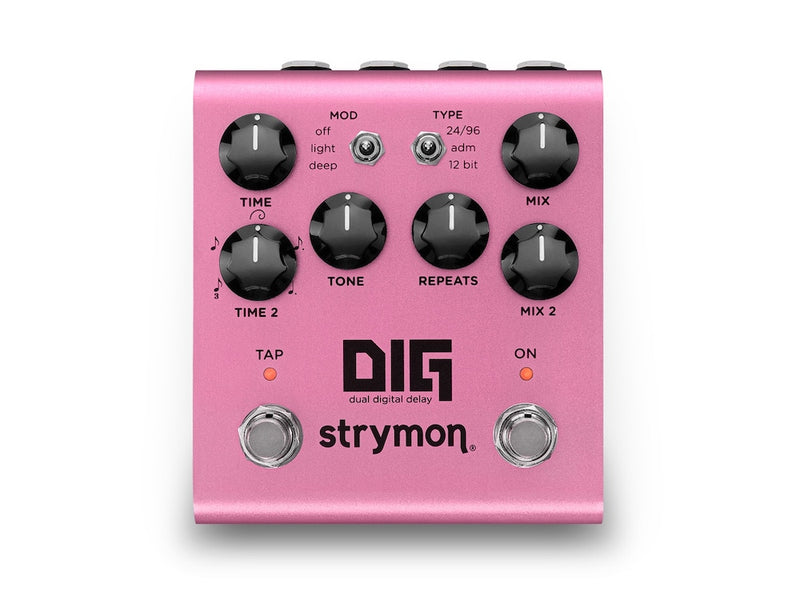

Strymon Dig Digital Delay v2

Specs

Ins, Outs, and Switches

• ●  High impedance ultra low-noise discrete Class A JFET TRS stereo input.

• ●  Low impedance independent TS stereo outputs.

• ●  Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch,

  MultiSwitch Plus, or TRS MIDI connection.

• ●  USB jack for controlling via MIDI from a computer or for performing firmware updates.

• ●  Dedicated Tap Tempo & On/Off footswitches

  Audio Quality

• ●  Premium JFET analog front end

• ●  Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide

  uncompromising audio quality

• ●  520MHz ARM Superscalar processor

• ●  32-bit floating point processing

• ●  20Hz to 20kHz frequency response

• ●  Audio Input Impedance: 1M Ohm

• ●  Audio Output Impedance: 100 Ohm

  More

• ●  Strong and lightweight anodized pink aluminum chassis

• ●  9V DC power supply included

• ●  Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of

  current.

• ●  Dimensions:

- 4.5” deep x 4” wide x 1.75” tall
- 11.4cmdeepx10.2cmwidex4.4cmtall - Designed and built in the USA
