Description

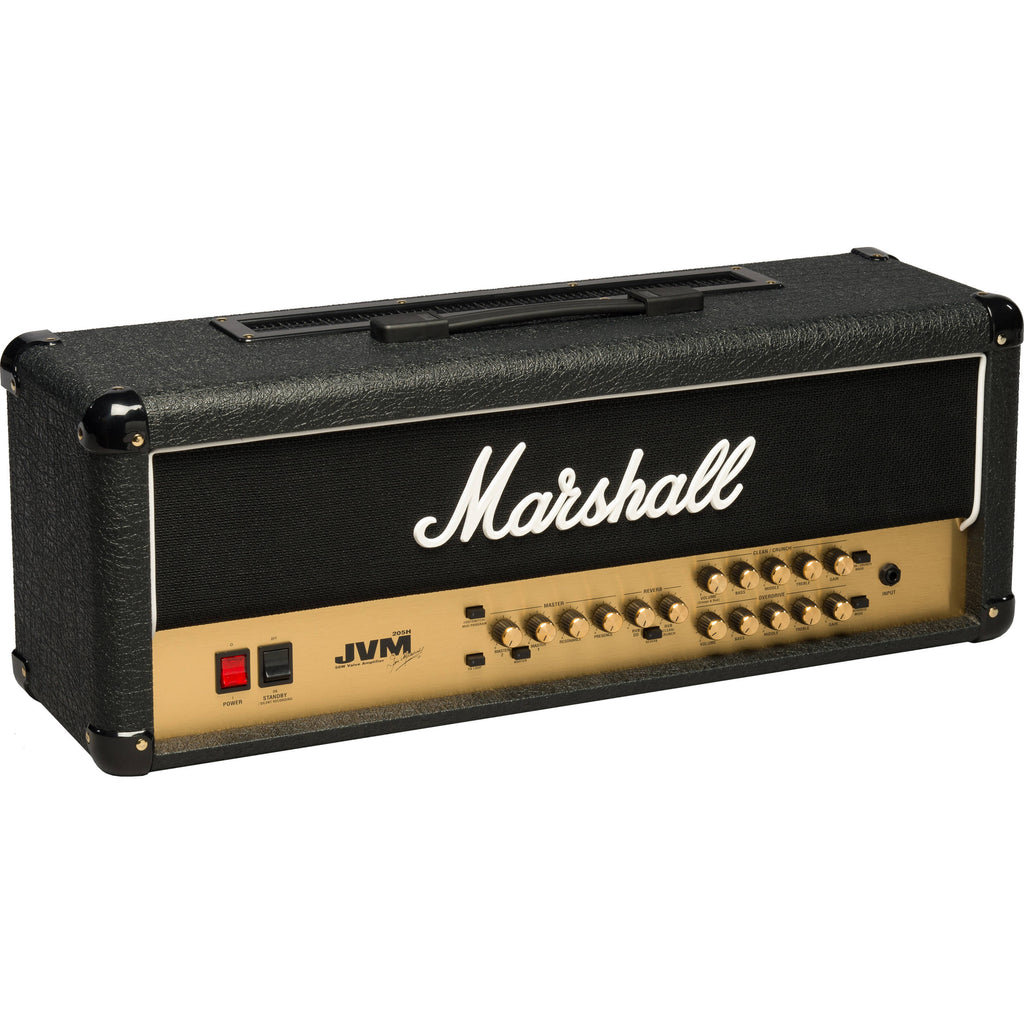

Enhance your sound with the extensive features of the 50W JVM205HTM. With a versatile and broad sound palette your musical talent is intensified no matter where you perform. Green, orange and red LED indicator lights will guide you through the sound palette and the modes of the two channels.
GENERAL
Model
JVM205H
Range
JVM
Technology
Valve
Channels
2 (Multi)
ELECTRONICS
Output wattage
50W
Outputs
Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), Emulated Line Out (XLR), MIDI Thru
Inputs
1 x 1/4" jack instrument input, MIDI In, Footswitch
Controls
Channel and mode select (button), gain (per channel), treble (per channel), middle (per channel), bass (per channel), reverb (per channel), presence, resonance, master volume select, master volume (switchable for each channel)
Effects
Digital reverb
Effects loop
2, 1 x series parallel, 1 x series
VALVES
Preamp valves
4 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves
2 x EL34
ACCESSORIES
Footswitch
PEDL-91006 included
Cable
Detachable power cable included, Speaker cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight
17.5 kg / 39 lbs
Width
740 mm / 29.1"
Height
310 mm / 12.2"
Depth
215 mm / 8.5"
