Description

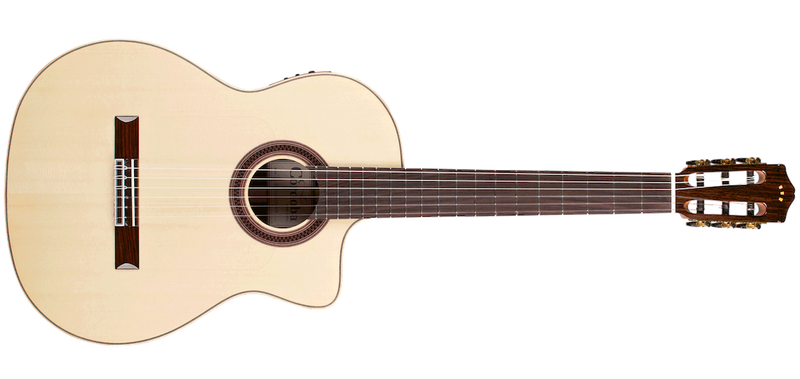

Built with a solid European spruce top, rosewood back and sides, soft cutaway and Fishman Presys Blend preamp, the GK Studio Negra is the ultimate gigging instrument and a Córdoba best seller. Made for the stage, the GK Studio Negra is constructed with a slightly thinner body depth, neck, and nut width than a traditional Spanish guitar. The neck is designed to have little or no relief, offering low action for ease of comfort and quick playability. Flamenco players choose this model for a bassier and more robust tone in contrast to the bright, snappy sound of ‘blanca’ flamenco guitars. However, any guitarist looking for a new tone will feel right at home. Like every Córdoba guitar, this model has a two-way truss rod built into the neck. Other premium features include a high gloss finish, clear flamenco-style tap plate, and Savarez strings.
Headstock Logo Cordoba Arches Logo - Maple
Tuning Machine Buttons Black
psid 1
Neck Joint Dovetail
Fret Dimensions 2.0mm (W) x 1.1mm (H)
Back Purfling Inlay Pattern & Dimensions N / A
Nut String Spacing 40mm
Back Binding Maple
Back Center Strip Maple
Tuning Machines Vendor & Model Der Jung DJCB1GK-A1B (S3)
Side Purfling Inlay Pattern & Dimensions N / A
Tuning Machine Ratio 14:1
Tail Strip Maple
Top Purfling Pattern & Dimensions N / A
Electronics Vendor & Model Fishman OEM-PSY-B03
Headplate Rosewood
Pickup Type Undersaddle Piezo + Microphone, Onboard Tuner
Middle Pickup None
Battery Pack Inside Preamp Compartment - 9V
Battery Pack Installation Location Flip Up Preamp
Waist Width 244mm (9 5/8")
Target Instrument Weight 3.5 lbs / 1.6 kg
Number of Strings 6
Exclusive No
Does it contain shell? Yes - MOP
Shipper Carton Dimensions 104 x 47 x 14 (cm)/ 41 x 18.5 x 5.5 (inches) - Cordoba Guitar Triangle Box (No Case)
Master Carton Dimensions 111.5x58x69 (cm) / 43.9x22.8x16x27.2 (inches) - Cordoba Triangle Master Carton (6 Pack)
Tuning E-A-D-G-B-E
pcid 1
Frets to Body 12
Item Number 04708
Family Cutaway & Electric
Build Flamenco
Construction Solid Top
Body Top Solid European Spruce
Top Bracing Pattern Fan
Soundhole Diameter 84mm (3.3")
Rosette All Wood Traditional
Top Purfling Inlay 3-ply Maple and Black
Top Binding Maple
Side Purfling Inlay N / A
Back and Sides Wood Rosewood
Back Purfling Inlay N / A
Neck Material Mahogany
Scale Length 650mm (25.6")
Neck Shape C Shape
Nut Width 50mm (2")
Neck Thickness 1st Fret 21mm
Neck Thickness 9th Fret 24mm
Truss Rod Dual Action
Truss Rod Wrench 4mm Allen Key
Fingerboard Material Rosewood
Fingerboard Inlays N / A
Frets Total 19
Color Natural (NAT)
Finish Gloss Polyurethane
Bridge Material Rosewood
Saddle Material Bone
Nut Material Bone
Tuning Machines Cordoba Gold and Black with Black Buttons
Tap Plate Yes
Electronics Fishman Presys Blend
Controls Tuner, Volume, Bass, Middle, Treble, Notch, Mic Blend, and Phase Switch
Strings Savarez Cristal Corum High Tension 500CJ
Included Case Case Sold Separately
Upper Bout Width 286mm (11 1/4")
Lower Bout Width 368mm (14 1/2")
Body Depth Upper Bout 85mm (3 1/3")
Body Depth Lower Bout 90mm (3 1/2")
Body Length 489mm (19 1/4")
Overall Length 984mm (38 3/4")
Country of Origin China
